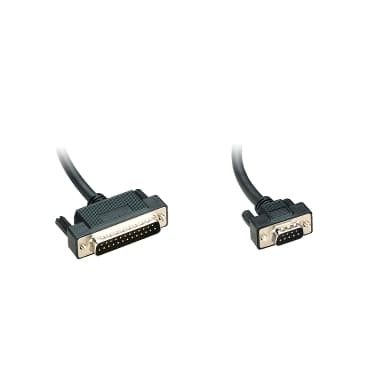

XBTZG9740
Product ID:36761
Updated: 2026/7/14
Key Features
- 1Establish direct connection between Magelis terminals and Omron Sysmac PLCs.
- 2Utilize a 5-meter cable with SUB-D 25 and SUB-D 9 male connectors.
- 3Ensure compatibility with Harmony HMI, GTO, and Omron FINS/A Link protocols.
- 4Guarantee reliable data transmission via the RS232C physical interface.
- 5Meet environmental standards with EU and China RoHS compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XBT | accessory / separate part category | Connection accessories |
| accessory / separate part type | Connecting cable | Product or Component Type | Connecting cable |
| Accessory / separate part designation | Direct connection cable | Accessory / separate part destination | Direct connection of XBT terminal to Omron Sysmac PLC |
| Product Compatibility | XBTGK....<br />XBTGT4...<br />XBTGT7340<br />XBTGT5...<br />XBTGTW...<br />XBTGT6...<br />XBTOT...<br />XBTGT2... | Range Compatibility | Harmony HMI GTO<br />Omron FINS<br />Omron A Link |
| Cable length | 16.4 ft (5 m) | Electrical connection | 1 male connector SUB-D 25<br />1 male connector SUB-D 9 |
| communication port protocol | A Link (SIO)<br />FINS (SIO) | Physical interface | RS232C |
Specifications may be subject to change without notice
