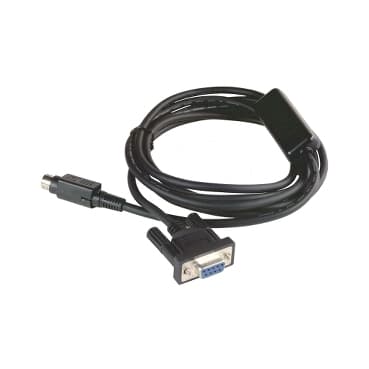

XBTZG9775
Product ID:36767
Updated: 2026/4/3
Key Features
- 1Connect Magelis terminals to Mitsubishi FX series PLCs directly. 2、Ensure reliable communication using the RS422 protocol. 3、Enable direct connection for XBTGH and XBTGT terminals. 4、Utilize a 5-meter length for extended operational reach. 5、Meet Schneider Electric Green Premium standards for sustainability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XBT | accessory / separate part category | Connection accessories |
| accessory / separate part type | Connecting cable | Product or Component Type | Connecting cable |
| Accessory / separate part designation | Direct connection cable | Accessory / separate part destination | Direct connection of XBT terminal to Mitsubishi Melsec PLC |
| Product Compatibility | XBTOT...<br />XBTGT7340<br />XBTGT5...<br />XBTGK....<br />XBTGT4...<br />XBTGT6...<br />XBTGT2... | Range Compatibility | Mitsubishi FX<br />Harmony HMI GTO |
| Cable length | 16.4 ft (5 m) | Electrical connection | 1 male connector mini DIN<br />1 male connector SUB-D 9 |
| communication port protocol | FX (CPU) | Physical interface | RS422 |
Specifications may be subject to change without notice
