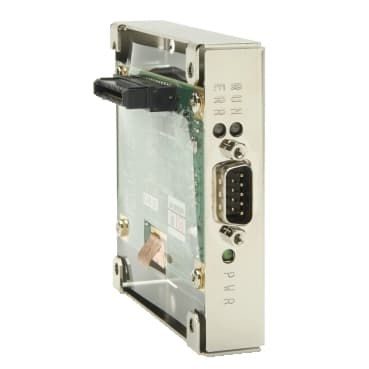

XBTZGCANM
Product ID:36777
Updated: 2026/7/14
Key Features
- 1Control advanced panels precisely for reliable industrial operation.
- 2Integrate seamlessly with XBTGT2220, XBTGT2130, and other CANopen masters.
- 3Operate reliably across a wide temperature range from 32 to 122 °F.
- 4Install easily with a compact design and integrated SUB-D 9 connector.
- 5Meet safety standards with UL certification and IP20 rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Magelis XBT GC, GT/GK with control | Product or Component Type | CANopen bus master module |
| Product Compatibility | XBTGT2220<br />XBTGT2130<br />XBTGT2930<br />XBTGT2330<br />XBTGT5230<br />XBTGT6340<br />XBTGT4330<br />XBTGK5330<br />XBTGK2330<br />XBTGT2110<br />XBTGT5330<br />XBTGT5340<br />XBTGT5430<br />XBTGT7340<br />XBTGT4340<br />XBTGT2430<br />XBTGT2120<br />XBTGT6330<br />XBTGT4230<br />XBTGK2120 | Integrated connection type | CANopen master bus male SUB-D 9, 2 twisted shielded pairs |
| Bus type | CANopen M10 DR 303-1<br />CANopen M10 DS 301 V4.02 | Number of channels | 64 RPDO<br />64 TPDO |
| [Us] rated supply voltage | 5 V DC | Transmission rate | 100 kbit/s 1640.4 ft (500 m)<br />1000 kbit/s 164.04 ft (50 m)<br />125 kbit/s 1394.4 ft (425 m)<br />20 kbit/s 3280.8 ft (1000 m)<br />250 kbit/s 820.2 ft (250 m)<br />50 kbit/s 2624.7 ft (800 m)<br />500 kbit/s 410.1 ft (125 m) |
| Power dissipation in W | 2.4 W 5 V DC | Number of modules per base controller | 1 |
| Number of server device(s) | 16 | Supply | External supply |
| marking | CE | Status LED | 1 LED ERR<br />1 LED PWR<br />1 LED RUN |
| Net Weight | 0.2 lb(US) (0.1 kg) | Product Certifications | UL |
| IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Relative Humidity | 10…90 % without condensation |
Specifications may be subject to change without notice
