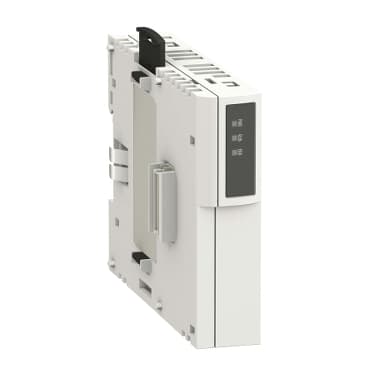

XBTZGCCAN
Product ID:36778
Updated: 2026/4/3
Key Features
- 1Integrate seamlessly with Magelis XBT GC, GT/GK controllers via CANopen bus. 2、Achieve high-speed data transfer at rates up to 1000 kbit/s. 3、Simplify panel layout with an extremely compact and space-saving design. 4、Reduce installation time using the simple Telefast wiring system. 5、Support sustainable operations with an eco-friendly "Better World" module.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Magelis XBT GC, GT/GK with control | Product or Component Type | CANopen bus master module |
| Product Compatibility | XBTGC1100U<br />XBTGC1100T<br />XBTGC2120U<br />XBTGC2230T<br />XBTGC2120T<br />XBTGC2230U | Integrated connection type | CANopen master bus male SUB-D 9, 2 twisted shielded pairs |
| Bus type | CANopen M10 DR 303-1<br />CANopen M10 DS 301 V4.02 | Number of channels | 64 RPDO<br />64 TPDO |
| [Us] rated supply voltage | 5 V DC | Transmission rate | 100 kbit/s 1640.4 ft (500 m)<br />1000 kbit/s 164.04 ft (50 m)<br />125 kbit/s 1394.4 ft (425 m)<br />20 kbit/s 3280.8 ft (1000 m)<br />250 kbit/s 820.2 ft (250 m)<br />50 kbit/s 2624.7 ft (800 m)<br />500 kbit/s 410.1 ft (125 m) |
| Power dissipation in W | 2.4 W 5 V DC | Number of modules per base controller | 1 |
| Number of server device(s) | 16 | Supply | External supply |
| marking | CE | Status LED | 1 LED ERR<br />1 LED PWR<br />1 LED RUN |
| Net Weight | 0.2 lb(US) (0.1 kg) | Product Certifications | UL |
| IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Relative Humidity | 10…90 % without condensation |
