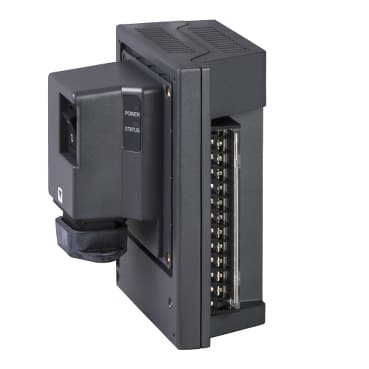

XBTZGJBOX
Product ID:36886
Updated: 2026/7/14
Key Features
- 1Enable 24V DC power supply to XBTGH terminals.
- 2Connect various safety inputs and outputs reliably.
- 3Facilitate integration on Ethernet or Modbus networks.
- 4Mount easily on a 35 mm DIN rail.
- 5Reduce waste with eco-friendly recycled packaging.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Magelis XBTGH | Product or Component Type | Junction box |
| Product Specific Application | For XBTGH advanced hand-held panel | [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V | Inrush current | 30 A |
| Power consumption in W | 6.3 W | Electrical connection | 1 connector 24-pin connector hand-held panel<br />1 connector RJ45 Ethernet TCP/IP<br />1 male connector SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s COM1 serial link<br />Screw terminal block 24 inputs/outputs |
| Port Ethernet | 10BASE-T/100BASE-TX | Enclosure Material | PPT |
| Fixing mode | By 4 M4 screws 1.5 to 10 mm thick panel<br />Clip-on 35 mm symmetrical DIN rail | marking | CE |
| Immunity to microbreaks | 10 ms | Standards | FCC Class A<br />EN 61131-2<br />IEC 61000-6-2<br />UL 508 |
| Product Certifications | cULus<br />C-tick | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Operating altitude | <= 6561.68 ft (2000 m) |
| IP degree of protection | IP20 rear panel)<br />IP65 front panel) | Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Vibration resistance | 1 gn 9…150 Hz)<br />3.5 mm 5…9 Hz) | Relative Humidity | 0…90 % without condensation or dripping water |
| Resistance to electrostatic discharge | 6 kV IEC 61000-4-2 level 3 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 level 3 |
