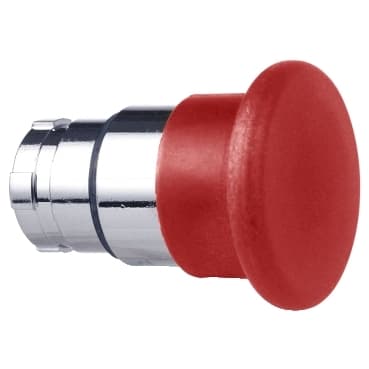

ZB2BC4
Product ID:36831
Updated: 2026/7/15
Key Features
- 1Ensure safety with a highly visible red 40mm mushroom head.
- 2Install easily into standard 22mm mounting holes.
- 3Rely on a consistent spring return mechanism for positive operation.
- 4Withstand harsh conditions thanks to IP66/67/69K ingress protection.
- 5Reduce long-term costs with durable, high-quality construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB2 | Product or Component Type | Mushroom head push-button |
| Device short name | ZB2 | Bezel material | Zamak |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Product Compatibility | XB2. | Mounting Location | Panel |
| Shape of signaling unit head | Round | Type of operator | Spring return spring return |
| Operator profile | Red mushroom Ø 40 mm, unmarked | Mechanical durability | 3000000 cycles |
| Height | 1.6 in (40 mm) | Width | 1.6 in (40 mm) |
| Depth | 1.9 in (48 mm) | Net Weight | 0.099 lb(US) (0.045 kg) |
| Protective treatment | TC/TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Standards | GB/T 14048.5<br />EN/IEC 60947-5-1<br />GB/T 14048.1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />GB/T 14048.14 |
| Product Certifications | CCC<br />CE | Vibration resistance | 8 gn 40…500 Hz)IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
