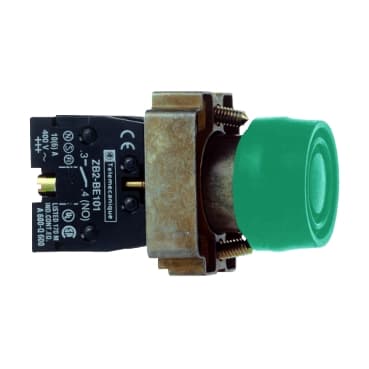

ZB2BE101
Product ID:36837
Updated: 2026/7/15
Key Features
- 1Utilize silver alloy contacts for superior durability and electrical efficiency.
- 2Integrate seamlessly into panels with a compact 22mm standard design.
- 3Apply across diverse industrial machinery and control systems.
- 4Ensure safety and compliance with UL Listed and CSA certifications.
- 5Simplify installation using reliable screw terminal connections.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XAC | Product or Component Type | Contact block |
| Component name | ZB2 | electrical circuit type | Control circuit |
| Contact block application | Single speed | Contact block type | Single |
| Type of operator | Spring return | Product Compatibility | XB4<br />XAPS2<br />XACA<br />XB5 |
| Contacts type and composition | 1 NO | Mounting of block | Front mounting |
| Contact operation | Slow-break | Mechanical durability | 1000000 cycles |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A<br />A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A<br />Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A<br />Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A | [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm | Operating force | 13…15 N |
| Short-circuit protection | 10 A fuse protection cartridge gG (gl) | Rated operational power in W | 40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1<br />48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1<br />65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1 |
| Terminals description ISO n°1 | (13-14)NO | Net Weight | 0.04 lb(US) (0.02 kg) |
| Connections - terminals | Screw clamps terminals, 1 x 2.5 mm² with or without cable end<br />Screw clamps terminals, 2 x 1.5 mm² with or without cable end | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Vibration resistance | 15 gn 10…500 Hz)IEC 60068-2-6 |
| Electrical shock protection class | Class II IEC 61140 | Standards | EN/IEC 60947-5-1<br />UL 508<br />EN/IEC 60204-32<br />CSA C22.2 No 14 |
Specifications may be subject to change without notice
