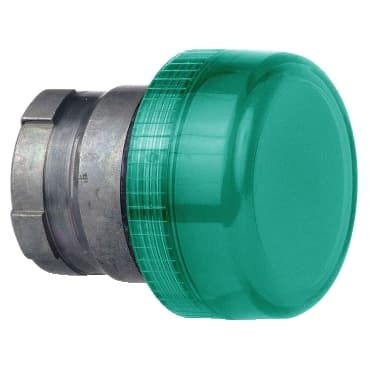

ZB2BV03
Product ID:36854
Updated: 2026/7/15
Key Features
- 1Ensure long-lasting performance with a durable plastic bezel.
- 2Simplify installation using the round shape design.
- 3Provide clear signaling via the green plain lens.
- 4Protect against dust and water with NEMA 13 rating.
- 5Connect seamlessly to compatible BA 9s signaling units.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product or Component Type | Head for pilot light | Device short name | ZB2 |
| Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Operator additional information | With plain lens |
| Product Compatibility | BA 9s | Overvoltage category | Class II IEC 60536 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Shape of signaling unit head | Round |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | P3 front mounting BA 9s<br />P4 front mounting BA 9s and transformer<br />PF2 front mounting BA 9s |
| Net Weight | 0.040 lb(US) (0.018 kg) | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Standards | EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />JIS C 4520<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />UL 508 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
