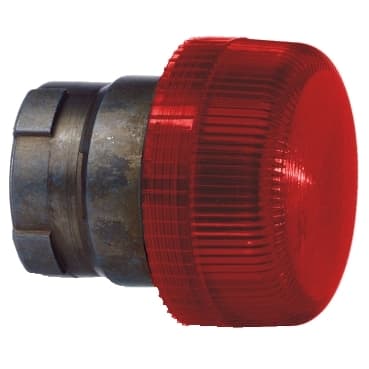

ZB2BV043
Product ID:36855
Updated: 2026/7/15
Key Features
- 1Engineer robust signaling with high-impact resistance for industrial durability.
- 2Ensure clear visibility using built-in LED illumination modules.
- 3Protect against harsh conditions with reliable IP65-rated sealing.
- 4Operate easily with an ergonomically designed push button head.
- 5Guarantee broad compatibility meeting IEC, UL, and CCC standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product or Component Type | Head for pilot light | Device short name | ZB2 |
| Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Operator additional information | With plain lens |
| Product Compatibility | Integral LED | Overvoltage category | Class II IEC 60536 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Shape of signaling unit head | Round |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | P1 front mounting integral LED<br />P2 front mounting integral LED and transformer<br />PF1 front mounting integral LED<br />PR1 rear mounting integral LED |
| Net Weight | 0.037 lb(US) (0.017 kg) | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Standards | EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C 4520<br />UL 508<br />CSA C22.2 No 14 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
