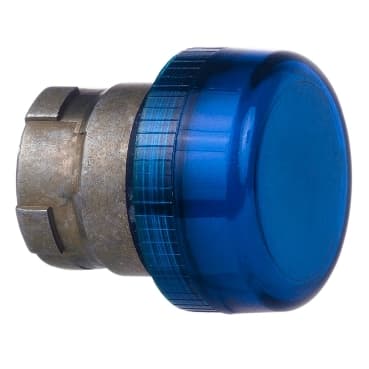

ZB2BV06
Product ID:36856
Updated: 2026/4/5
Key Features
- 1Enhance operational clarity with a high-visibility blue LED. 2、Save panel space using the compact Ø22mm round lens design. 3、Integrate seamlessly with various boards via the BA9s base. 4、Withstand demanding conditions thanks to durable industrial construction. 5、Simplify installation with quick-connect terminals for secure wiring.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product or Component Type | Head for pilot light | Device short name | ZB2 |
| Bezel material | Plastic | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Operator additional information | With plain lens |
| Product Compatibility | BA 9s | Overvoltage category | Class II IEC 60536 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Shape of signaling unit head | Round |
| Station name | XALD 1...5 cut-outs<br />XALK 2...5 cut-outs | Electrical composition code | P3 front mounting BA 9s<br />P4 front mounting BA 9s and transformer<br />PF2 front mounting BA 9s |
| Net Weight | 0.040 lb(US) (0.018 kg) | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Standards | UL 508<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C 4520 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
