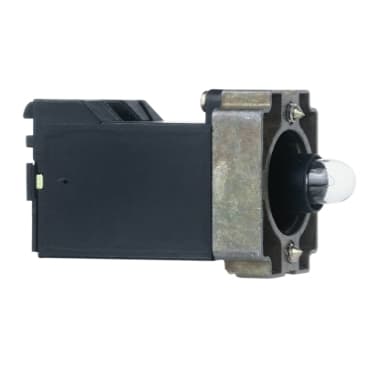

ZB2BV5
Product ID:36857
Updated: 2026/7/15
Key Features
- 1Operate on 50/60 Hz network frequency for consistent performance.
- 2Utilize an integral LED for clear, reliable illumination.
- 3Achieve IP20 protection against solid objects over 12mm.
- 4Power with versatile 24V AC or DC supply voltages.
- 5Ensure long-term reliability with a 100,000-hour service life.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Complete body/light block assembly |
| Device short name | ZB4 | Sale per indivisible quantity | 1 |
| Light source | Incandescent | Fixing collar material | Zamak |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 2.4 in (60 mm) | Terminals description ISO n°1 | (X1-X2)PL |
| Net Weight | 0.289 lb(US) (0.131 kg) | Overvoltage category | Class I IEC 60536 |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape of screw head | Cross Philips no 1 | [Ui] rated insulation voltage | 600 V 3)EN 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV EN 60947-1 | Signalling type | Steady |
| Bulb base | BA 9s | Light block supply | Via integral transformer 1.2 VA 6 V |
| [Us] rated supply voltage | 400 V AC 50/60 Hz | Mounting of block | Front mounting |
| Electrical composition code | P4 | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) |
| IP degree of protection | IP20 | Standards | UL 508<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />JIS C 4520<br />EN/IEC 60947-5-4 |
| Product Certifications | RINA<br />BV<br />DNV<br />CSA<br />GL<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
