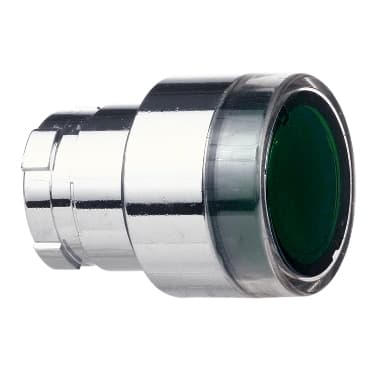

ZB2BW33
Product ID:36859
Updated: 2026/7/15
Key Features
- 1Ensure clear visibility with a green illuminated, 22mm diameter head.
- 2Withstand harsh industrial environments thanks to durable construction.
- 3Maintain stable operation with 15 gn vibration resistance (40-500 Hz).
- 4Operate reliably across a wide -25 to 55°C ambient temperature range.
- 5Protect against dust and water ingress with a flush IP65 rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony | Product or Component Type | Head for illuminated push-button |
| Bezel material | Chromium plated metal | Shape of signaling unit head | Round |
| electrical circuit type | Control circuit | Type of operator | Spring return |
| Mechanical durability | 3000000 cycles | Height | 1.2 in (30 mm) |
| Width | 1.2 in (30 mm) | Net Weight | 0.029 lb(US) (0.013 kg) |
| cap/operator or lens colour | Green | marking | Unmarked |
| Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Vibration resistance | 15 gn 40…500 Hz)IEC 60068-2-6 | Overvoltage category | Class II IEC 60536<br />Class II NF C 20-030 |
| Protective treatment | TC/TH | Standards | NF C 63-140<br />EN/IEC 60947-5-1<br />VDE 0660-200<br />IEC 60337-1 |
Specifications may be subject to change without notice
