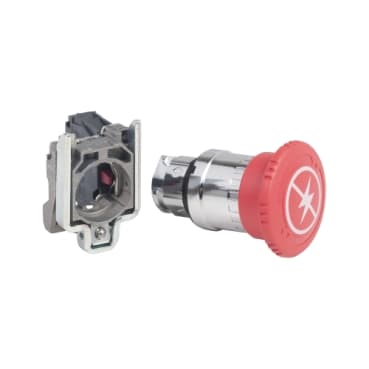

ZB4AEQ4020
Product ID:37229
Updated: 2026/7/15
Key Features
- 1Withstand harsh temperatures from -25°C to 70°C.
- 2Achieve IP66 rating for dust and water resistance.
- 3Simplify setup with easy assembly and disassembly.
- 4Connect using screw clamp, Faston, or spring terminals.
- 5Protect with a durable chromium-plated metal bezel.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
