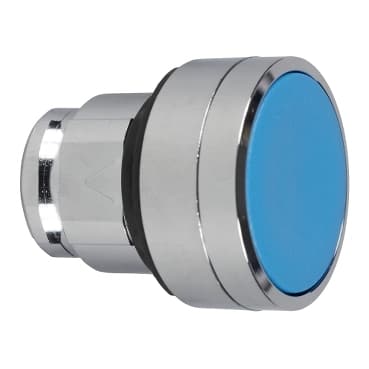

ZB4BA64
Product ID:37275
Updated: 2026/4/4
Key Features
- 1Feature a chromium-plated metal bezel for superior durability. 2、Ensure reliable operation with a spring return impulse mechanism. 3、Achieve IP66, IP67, and IP69K ratings against water ingress. 4、Withstand impacts with an IK06 mechanical protection rating. 5、Meet global standards including IEC, UL, CCC, EAC, and JIS.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Head type | Standard | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | Blue flush, unmarked |
| Operator additional information | High guard | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.2 in (31 mm) |
| Mechanical durability | 10000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />JIS C8201-1 | Product Certifications | GL<br />CSA<br />UL Listed<br />DNV<br />LROS (Lloyds register of shipping)<br />BV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
