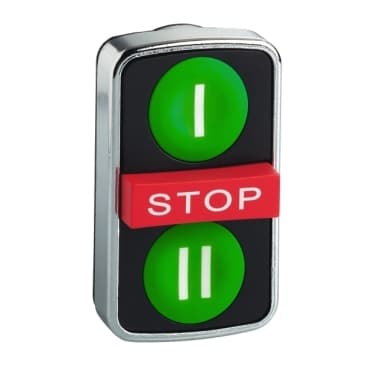

ZB4BA731327
Product ID:37299
Updated: 2026/4/4
Key Features
- 1Ensure robust construction for long-lasting industrial performance. 2、Operate with a reliable spring return mechanism. 3、Achieve high durability against shock and vibration. 4、Identify functions clearly with 1 red and 2 green marked buttons. 5、Protect with IP69K rating against high-pressure washdowns.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for triple-headed push-button |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Head type | Standard | Shape of signaling unit head | Rectangular |
| Type of operator | spring return | Operator profile | Red projecting, STOP white)<br />Green flush, I white)<br />Green flush, II white) |
| Operators description | Green ''I'' - green ''II'' - red ''STOP'' | Net Weight | 0.123 lb(US) (0.056 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | Black marking when white caps<br />White marking when green, red or black caps |
| Mechanical durability | 1000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting |
| Device presentation | Basic element | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP69 IEC 60529<br />IP69K IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 | Standards | UL 508<br />IEC 60947-1<br />IEC 60947-5-5<br />IEC 60947-5-1<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />JIS C8201-1 |
| Product Certifications | LROS (Lloyds register of shipping)<br />GL<br />DNV<br />CSA<br />BV<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
