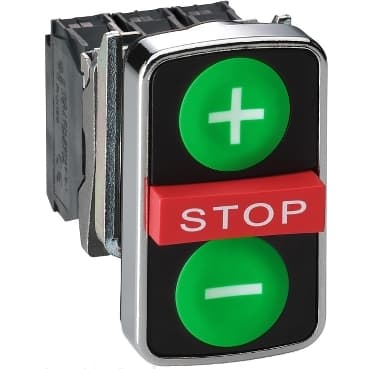

ZB4BA73135
Product ID:37384
Updated: 2026/4/4
Key Features
- 1Withstand 1 million operating cycles for long-lasting performance. 2、Meet IK06 standards for robust impact resistance. 3、Achieve IP66 and IP69K ratings for water and dust protection. 4、Enable versatile mounting with multiple terminal options. 5、Enhance operational efficiency with high-brightness illumination.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for triple-headed push-button |
| Device short name | ZB4 | Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Head type | Standard | Shape of signaling unit head | Rectangular |
| Type of operator | spring return | Operator profile | Red projecting, STOP white)<br />Green flush, - white)<br />Green flush, + white) |
| Operators description | Green ''+'' - green ''-'' - red ''STOP'' | Net Weight | 0.123 lb(US) (0.056 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Colour of marking | White marking when green, red or black caps<br />Black marking when white caps |
| Mechanical durability | 1000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting |
| Device presentation | Basic element | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP69 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 | Standards | IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />IEC 60947-1<br />IEC 60947-5-5<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
| Product Certifications | UL Listed<br />DNV<br />LROS (Lloyds register of shipping)<br />GL<br />BV<br />CSA | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
