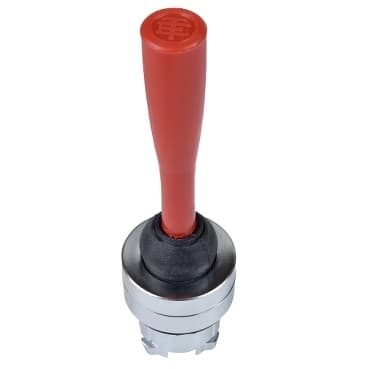

ZB4BB4
Product ID:37418
Updated: 2026/7/15
Key Features
- 1Feature robust design with high IK06 impact resistance.
- 2Ensure IP66 protection against dust and water ingress.
- 3Install easily into standard 22mm mounting holes.
- 4Equip a highly visible red actuator for clear status.
- 5Operate reliably from -25°C to 70°C in diverse settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for joystick controller |
| Device short name | ZB4 | Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | To zero position spring return | Operator profile | Red 54 mm long operating shaft |
| Operator direction information | Omnidirectional | Net Weight | 0.128 lb(US) (0.058 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Operator position information | All positions |
| Mechanical durability | 1000000 cycles | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529 | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | IEC 60947-5-5<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-1<br />IEC 60947-5-1<br />UL 508<br />JIS C8201-5-1<br />JIS C8201-1 |
| Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
