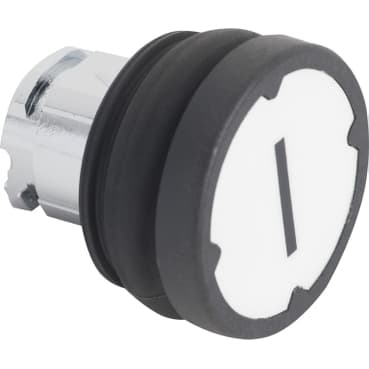

ZB4BC18023
Product ID:37420
Updated: 2026/7/15
Key Features
- 1Withstand 10 million mechanical cycles for exceptional durability.
- 2Achieve IP69K protection against high-pressure water ingress.
- 3Meet IEC 60068-2-6 standards for reliable vibration resistance.
- 4Operate across a wide temperature range from -40°C to 70°C.
- 5Install a flush-mount button with an ergonomic and aesthetic design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for push-button |
| Device short name | ZB4 | Bezel material | Chromium plated metal |
| Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | CAD overall width | 1.5 in (37 mm) |
| CAD overall height | 0.7 in (18.5 mm) | CAD overall depth | 1.5 in (37 mm) |
| Net Weight | 0.079 lb(US) (0.036 kg) | Electrical shock protection class | Class I IEC 61140 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | White flush, type H023 black) | Operator additional information | Vertical mounting |
| Mechanical durability | 10000000 cycles | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 | Main group | Harsh environment |
| Group of product | Flush marked type H023 | Marking | Type H023 |
| Colour of marking | Black | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
| Device presentation | Basic element | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP67<br />IP69 |
| NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 | Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) |
| IK degree of protection | IK06 conforming to IEC 62262 | Standards | IEC 60947-5-1<br />IEC 60947-1<br />UL 508<br />CSA C22.2 |
| Product Certifications | CE<br />CSA<br />UL |
Specifications may be subject to change without notice
