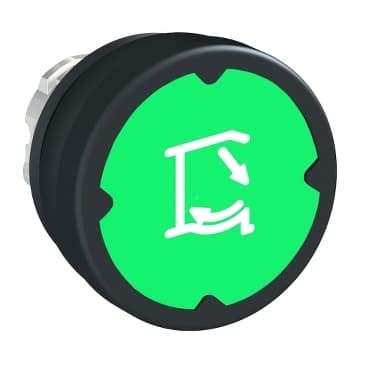

ZB4BC38013
Product ID:37339
Updated: 2026/4/4
Key Features
- 1Achieve 10 million operating cycles for high mechanical durability. 2、Resist harsh environments with IP66 and IP69K ingress protection ratings. 3、Ensure clear visibility using the green color and marking. 4、Protect personnel with Class I electrical shock protection. 5、Simplify integration through compatibility with Harmony XB4 Series.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for push-button |
| Device short name | ZB4 | Bezel material | Chromium plated metal |
| Head type | Standard | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | CAD overall width | 1.5 in (37 mm) |
| CAD overall height | 0.7 in (18.5 mm) | CAD overall depth | 1.5 in (37 mm) |
| Net Weight | 0.079 lb(US) (0.036 kg) | Electrical shock protection class | Class I IEC 61140 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Green flush, type H013 white) | Operator additional information | Vertical mounting |
| Mechanical durability | 10000000 cycles | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 | Main group | Harsh environment |
| Group of product | Flush marked type H013 | Marking | Type H013 |
| Colour of marking | White | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP67<br />IP69 | NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 |
| Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) | IK degree of protection | IK06 conforming to IEC 62262 |
| Standards | UL 508<br />IEC 60947-1<br />IEC 60947-5-1<br />CSA C22.2 | Product Certifications | CE<br />CSA<br />UL |
Specifications may be subject to change without notice
