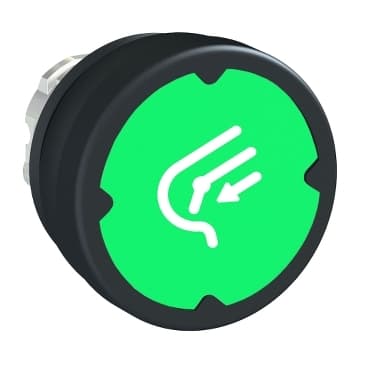

ZB4BC38027RA
Product ID:37464
Updated: 2026/4/4
Key Features
- 1Withstand 3 million mechanical cycles for long-term reliability. 2、Resist 30 gn shock and 5 gn vibration in demanding applications. 3、Achieve IP66 & IP69K protection against dust and high-pressure water. 4、Meet RoHS and REACh standards as a Green Premium product. 5、Mount horizontally on a standard 22 mm panel cutout.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for push-button |
| Device short name | ZB4 | Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| CAD overall width | 1.5 in (37 mm) | CAD overall height | 0.7 in (18.5 mm) |
| CAD overall depth | 1.5 in (37 mm) | Net Weight | 0.079 lb(US) (0.036 kg) |
| Electrical shock protection class | Class I IEC 61140 | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | Green flush, type H027 white) |
| Operator additional information | Horizontal mounting | Mechanical durability | 3000000 cycles |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Main group | Harsh environment | Group of product | Flush marked type H027 |
| Marking | Type H027 | Colour of marking | White |
| Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP69 |
| NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 | Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) |
| IK degree of protection | IK06 conforming to IEC 62262 | Standards | UL 508<br />CSA C22.2<br />IEC 60947-1<br />IEC 60947-5-1 |
| Product Certifications | CE<br />CSA<br />UL |
Specifications may be subject to change without notice
