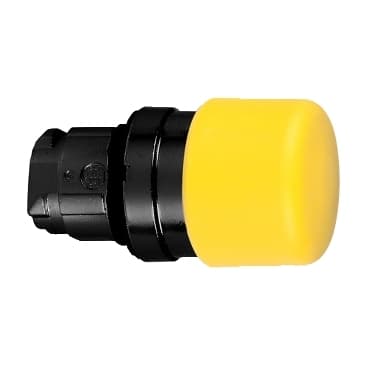

ZB4BC547
Product ID:37492
Updated: 2026/7/15
Key Features
- 1Ensure durability with a chromium-plated metal construction.
- 2Guarantee reliable operation via a spring return mechanism.
- 3Fit various panels with its 30mm round shape.
- 4Simplify installation for quick system integration.
- 5Meet IEC, CSA, and UL safety and performance standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Head type | Standard | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | Yellow mushroom Ø 30 mm, unmarked |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.2 in (30 mm) |
| CAD overall depth | 2.05 in (52 mm) | Mechanical durability | 5000000 cycles |
| Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 | Standards | EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />JIS C8201-1 |
| Product Certifications | CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />GL<br />UL Listed<br />BV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
