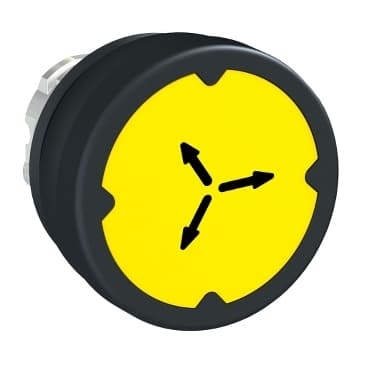

ZB4BC58009RA
Product ID:37496
Updated: 2026/4/3
Key Features
- 1Achieve IP66 protection for durability against dust and water ingress. 2、Operate reliably across a wide -40°C to 70°C temperature range. 3、Identify status easily with the visually distinct yellow actuator. 4、Simplify installation and maintenance with the flat button shape. 5、Integrate seamlessly as part of the standardized Harmony XB4 series.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for push-button |
| Device short name | ZB4 | Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
| cap/operator or lens colour | Yellow | CAD overall width | 1.5 in (37 mm) |
| CAD overall height | 0.7 in (18.5 mm) | CAD overall depth | 1.5 in (37 mm) |
| Net Weight | 0.079 lb(US) (0.036 kg) | Electrical shock protection class | Class I IEC 61140 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Yellow flush, type H009 black) | Operator additional information | Horizontal mounting |
| Mechanical durability | 3000000 cycles | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 | Main group | Harsh environment |
| Group of product | Flush marked type H009 | Marking | Type H009 |
| Colour of marking | Black | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| IP degree of protection | IP66 IEC 60529<br />IP69K<br />IP69 | NEMA degree of protection | NEMA 4 UL 508<br />NEMA 13<br />NEMA 12 |
| Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) | IK degree of protection | IK06 conforming to IEC 62262 |
| Standards | CSA C22.2<br />UL 508<br />IEC 60947-5-1<br />IEC 60947-1 | Product Certifications | CE<br />UL<br />CSA |
Specifications may be subject to change without notice
