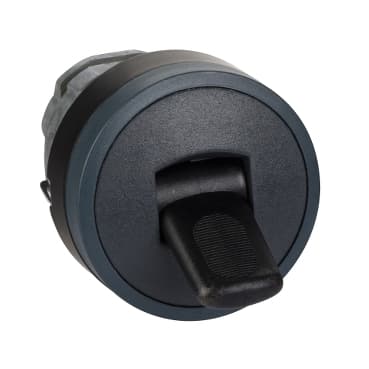

ZB4BD287
Product ID:37440
Updated: 2026/4/4
Key Features
- 1Achieve high vibration resistance with shake-proof terminal screws. 2、Customize your panel using a large set of accessories. 3、Ensure robust mechanical durability up to 500,000 cycles. 4、Switch various loads with compatible contact blocks. 5、Enhance durability with a chromium-plated metal bezel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for selector switch |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22 mm) | Head type | Standard |
| Sale per indivisible quantity | 1 | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.8 in (45 mm) |
| Net Weight | 0.057 lb(US) (0.026 kg) | Overvoltage category | Class I IEC 60536 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Shape of signaling unit head | Round |
| Type of operator | stay put | Operator profile | Black toggle switch |
| Operator position information | 2 positions 90° | Mechanical durability | 500000 cycles |
| Electrical composition code | C11 3 single front mounting<br />C12 6 single front mounting<br />C15 1 single front mounting<br />C13 6 single and double front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP degree of protection | IP69K<br />IP67 IEC 60529<br />IP69 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-5-5<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />UL 508<br />IEC 60947-5-4<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | UL Listed<br />BV<br />GL<br />CSA<br />LROS (Lloyds register of shipping)<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
