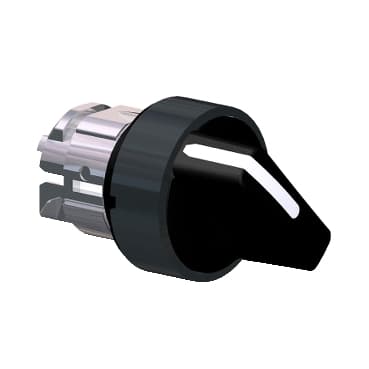

ZB4BD47
Product ID:37460
Updated: 2026/4/4
Key Features
- 1Withstand harsh conditions with high vibration and chemical resistance. 2、Simplify installation using a modular metal design with 22mm mount. 3、Meet global standards including UL, CSA, BV, and DNV certifications. 4、Ensure durability with a mechanical life of 1,000,000 cycles. 5、Protect against dust and water with IP67/IP69K ingress rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for selector switch |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22.5 mm) | Head type | Standard |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Type of operator | Right to left spring return | Operator profile | Black standard handle |
| Operator position information | 2 positions 90° | cap/operator or lens colour | Black |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.7 in (44 mm) | Net Weight | 0.099 lb(US) (0.045 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 1000000 cycles |
| Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C5 5 single front mounting<br />C6 5 single and double front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP67 IEC 60529<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 | Standards | JIS C8201-5-1<br />UL 508<br />IEC 60947-5-5<br />IEC 60947-5-4<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />JIS C8201-1 |
| Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
