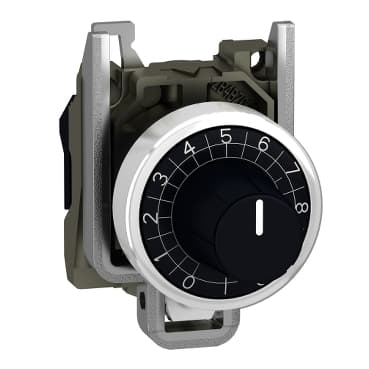

ZB4BD922
Product ID:37535
Updated: 2026/4/3
Key Features
- 1Achieve IP65-rated protection against dust and water jets. 2、Withstand high impact and vibration in demanding industrial settings. 3、Operate reliably across a wide temperature range from -40°C to 70°C. 4、Ensure easy installation with compatibility for 6.35mm shaft potentiometers. 5、Benefit from robust metal construction with a polished chrome finish.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head + mounting base for potentiometer |
| Device short name | ZB4 | Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22 mm) | Product Compatibility | For use with Ø 6.35 mm shaft |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Net Weight | 0.18 lb(US) (0.08 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Shape of signaling unit head | Round | Operator profile | knurled knob, with white) |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-1<br />IEC 60947-5-5<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
