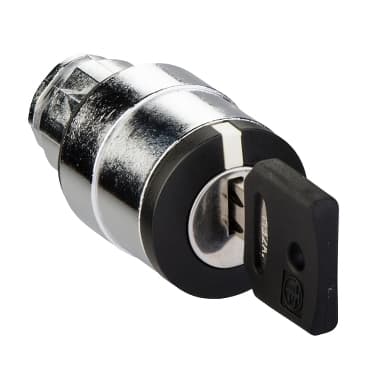

ZB4BG2K1132A
Product ID:37610
Updated: 2026/7/15
Key Features
- 1Withstand high-pressure cleaning up to 1015 psi at 131°F.
- 2Ensure 1,000,000 cycles for long-term reliability.
- 3Operate reliably in harsh environments from -40 to 158°F.
- 4Provide secure operation with a special key lock mechanism.
- 5Integrate seamlessly as part of the Harmony XB4 series.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for key selector switch |
| Device short name | ZB4 | Mounting diameter | 0.9 in (22 mm) |
| Head type | Standard | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Operator profile | key switch |
| Operator position information | 2 positions 90° | Type of Keylock | Special key |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 1000000 cycles |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
