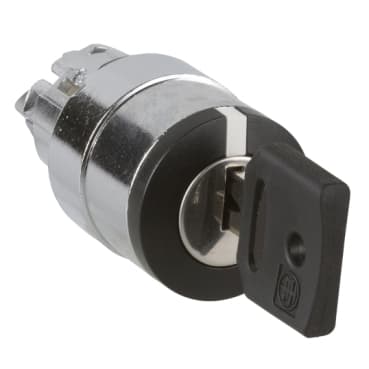

ZB4BG4K2214A
Product ID:37636
Updated: 2026/7/15
Key Features
- 1Withstand high-pressure washers up to 1015.26 psi.
- 2Ensure longevity with a chromium-plated metal bezel.
- 3Secure mounting via snap-fit design and a single screw.
- 4Connect using screw clamp, Faston, or PCB terminals.
- 5Resist dust and water ingress for industrial use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for key selector switch |
| Device short name | ZB4 | Mounting diameter | 0.9 in (22 mm) |
| Sale per indivisible quantity | 1 | Shape of signaling unit head | Round |
| Operator profile | key switch | Operator position information | 2 positions 90° |
| Type of Keylock | Special key | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 2.8 in (72 mm) |
| Net Weight | 2.16 lb(US) (0.98 kg) | Mechanical durability | 1000000 cycles |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP69K IEC 60529 |
| NEMA degree of protection | NEMA 13 | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
