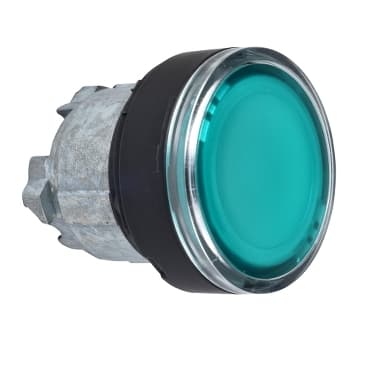

ZB4BH0337
Product ID:37853
Updated: 2026/4/3
Key Features
- 1Ensure durability with a chromium-plated metal bezel for harsh environments. 2、Enhance visibility using compatible integral LED operation. 3、Secure operation via a latched push-push mechanism. 4、Resist high-pressure washdowns up to 7,000,000 Pa at 55°C. 5、Achieve IP69K protection compliant with IEC 60529 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
| Product Compatibility | Integral LED | Device short name | ZB4 |
| Bezel material | Black metal | Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | push-push |
| Operator profile | Green flush, unmarked | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.2 in (30 mm) |
| Net Weight | 0.057 lb(US) (0.026 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical durability | 500000 cycles | Electrical composition code | M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class I IEC 60536 |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 | Standards | EN/IEC 60947-5-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />JIS C8201-1 |
| Product Certifications | GL<br />DNV<br />BV<br />CSA<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
