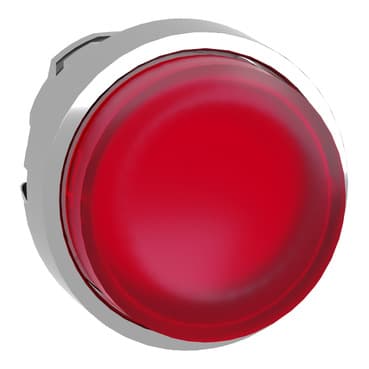

ZB4BH43
Product ID:37806
Updated: 2026/7/14
Key Features
- 1Construct from chromium-plated metal for extreme durability.
- 2Achieve IP67 and IP69K ratings against dust, water, and vibration.
- 3Install easily into a standard 22mm mounting hole.
- 4Enhance visibility with a universal, high-brightness LED light source.
- 5Connect flexibly using screw clamp, connector, or spring terminals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
| Product Compatibility | Universal LED | Device short name | ZB4 |
| Bezel material | Chromium plated metal | Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | push-push |
| Operator profile | Red projecting, unmarked | cap/operator or lens colour | Red |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.3 in (33 mm) | Net Weight | 0.057 lb(US) (0.026 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 500000 cycles |
| Electrical composition code | M5 2 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 60536 | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP69<br />IP69K<br />IP67 IEC 60529 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | UL 508<br />IEC 60947-5-5<br />IEC 60947-5-4<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
