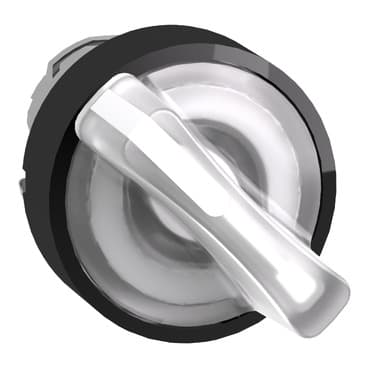

ZB4BK12137
Product ID:37895
Updated: 2026/4/3
Key Features
- 1Construct a durable black metal body with a white handle for longevity. 2、Integrate universal LED illumination for clear status indication. 3、Achieve robust protection with IP66, IP67, IP69, and IP69K ratings. 4、Ensure secure operation using a reliable 2-position stay-put mechanism. 5、Meet global standards including UL, GL, CSA, and NEMA 4X.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated selector switch |
| Product Compatibility | Universal LED | Device short name | ZB4 |
| Bezel material | Black metal | Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | stay put |
| Operator profile | White standard handle | Operator position information | 2 positions 90° |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.7 in (43 mm) | Net Weight | 0.079 lb(US) (0.036 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 1000000 cycles |
| Electrical composition code | M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK04 conforming to IEC 50102 | Standards | IEC 60947-5-5<br />UL 508<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
| Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
