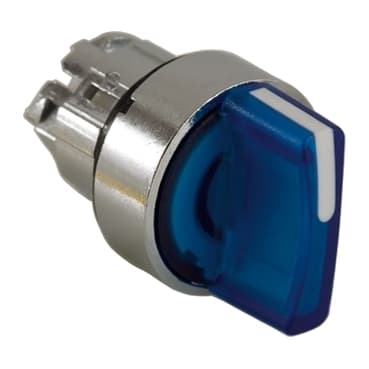

ZB4BK1563V
Product ID:23892
Updated: 2026/7/14
Key Features
- 1Withstand high-pressure washdowns up to 1015.26 psi and 131°F.
- 2Ensure reliable operation with 500,000 mechanical cycles.
- 3Simplify upgrades via compatibility with all universal LED colors.
- 4Enable quick installation and removal for easy maintenance.
- 5Support sustainability with recycled packaging and Schneider's green campaign.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated selector switch |
| Product Compatibility | Integral LED | Device short name | ZB4 |
| Bezel material | Chromium plated metal | Head type | Standard |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | To centre spring return |
| Operator profile | Blue varnished standard handle | Operator position information | 3 positions +/- 45° |
| CAD overall width | 1.1 in (29 mm) | CAD overall height | 1.1 in (29 mm) |
| CAD overall depth | 1.7 in (43 mm) | Net Weight | 0.079 lb(US) (0.036 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m | Mechanical durability | 500000 cycles |
| Electrical composition code | M3 4 single front mounting integral LED<br />M6 2 single front mounting integral LED and transformer<br />M10 2 single front mounting integral LED<br />M4 4 single and double front mounting integral LED | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK04 conforming to IEC 50102 |
| Standards | EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA<br />GL<br />BV<br />LROS (Lloyds register of shipping)<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
