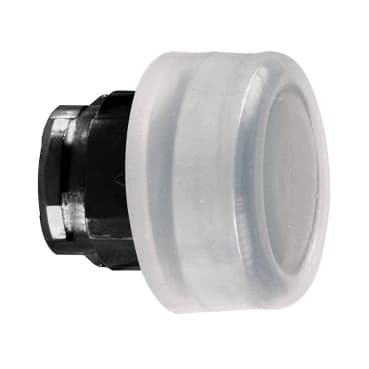

ZB4BP27
Product ID:23814
Updated: 2026/4/3
Key Features
- 1Achieve IP66 protection for reliable operation in harsh, dusty, or wet conditions. 2、Install easily with a compact 22mm design that fits standard panel cutouts. 3、Select the durable black metal actuator for enhanced longevity and sleek appearance. 4、Rely on the spring return mechanism for consistent, automatic reset after each press. 5、Integrate seamlessly with Schneider Electric Harmony series and other industrial systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Product compatibility | not compatible with legend holder |
| Bezel material | Black metal | Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Black projecting, unmarked | Operator additional information | Clear boot |
| cap/operator or lens colour | Black | CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 1.2 in (30 mm) | CAD overall depth | 1.4 in (35 mm) |
| Mechanical durability | 10000000 cycles | Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14<br />IEC 60947-5-5<br />IEC 60947-5-4<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
