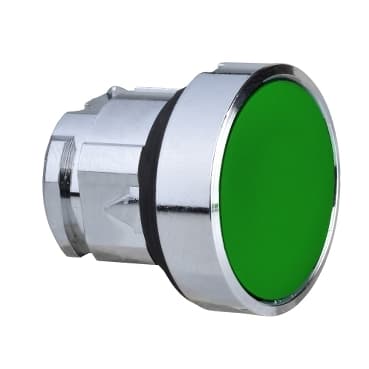

ZB4BP38
Product ID:23819
Updated: 2026/7/14
Key Features
- 1Adopt a flush standard design with a 22mm round shape and chromium-plated bezel.
- 2Ensure reliable operation via a spring return mechanism and clear silicone boot.
- 3Achieve high durability with 10,000,000 mechanical cycles for lasting performance.
- 4Support environmental goals with packaging made from recycled cardboard.
- 5Enjoy universal compatibility with LED blocks and multiple connection types.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Product compatibility | not compatible with legend holder |
| Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Green flush, unmarked | Operator additional information | Clear boot for insertion of protected legend within head |
| cap/operator or lens colour | Green | CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 1.2 in (30 mm) | CAD overall depth | 1.5 in (37 mm) |
| Mechanical durability | 10000000 cycles | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67 |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | JIS C8201-5-1<br />UL 508<br />IEC 60947-1<br />IEC 60947-5-5<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
