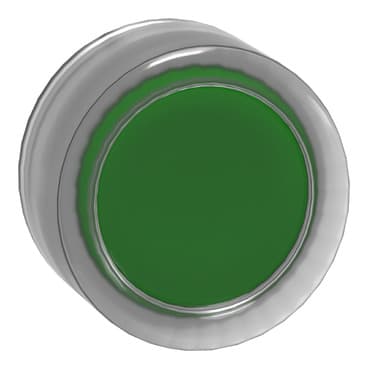

ZB4BP383
Product ID:23820
Updated: 2026/4/3
Key Features
- 1Achieve high mechanical durability with 10 million cycles. 2、Ensure IP66 protection against dust and water ingress. 3、Rely on spring return operator for consistent operation. 4、Identify status clearly with green flush actuator. 5、Gain peace of mind with an 18-month warranty.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Product compatibility | legend holder |
| Bezel material | Chromium plated metal | Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 | Head type | Standard |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Green flush, unmarked | Operator additional information | Clear membrane for insertion of protected legend within head |
| cap/operator or lens colour | Green | CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 1.2 in (30 mm) | CAD overall depth | 1.3 in (32 mm) |
| Mechanical durability | 10000000 cycles | Electrical composition code | C3 6 single front mounting<br />C4 6 single and double front mounting<br />C14 2 single front mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | UL 508<br />IEC 60947-5-4<br />IEC 60947-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-5<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
