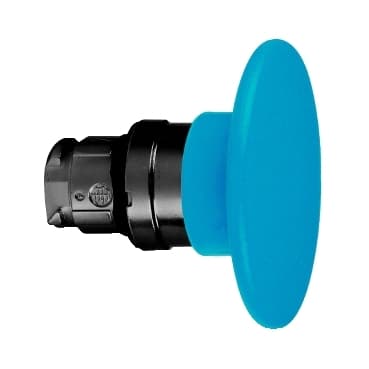

ZB4BR67
Product ID:23908
Updated: 2026/4/3
Key Features
- 1Withstand up to 10 million mechanical cycles for extreme longevity. 2、Ensure reliable operation in harsh conditions with IP67 protection. 3、Support versatile electrical configurations (C15, C11, C1, C2). 4、Feature robust construction for durable and long-lasting performance. 5、Simplify installation with standard mounting diameters and screw access.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Head type | Standard | Shape of signaling unit head | Round |
| Type of operator | spring return | Operator profile | Blue mushroom Ø 60 mm, unmarked |
| CAD overall width | 2.4 in (60 mm) | CAD overall height | 2.4 in (60 mm) |
| CAD overall depth | 2.05 in (52 mm) | Mechanical durability | 5000000 cycles |
| Electrical composition code | C1 9 single front mounting<br />C2 9 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | EN/IEC 60947-1<br />UL 508<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 |
| Product Certifications | BV<br />GL<br />UL Listed<br />CSA<br />DNV<br />LROS (Lloyds register of shipping) | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
