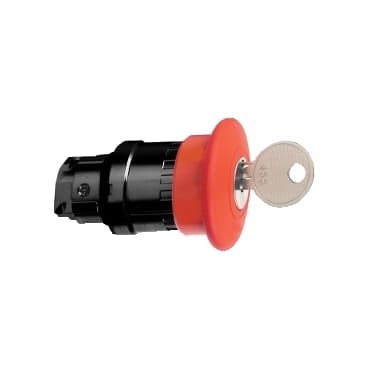

ZB4BS14107
Product ID:23917
Updated: 2026/4/3
Key Features
- 1Withstand 300,000 mechanical cycles for long-term reliability. 2、Ensure operation in harsh conditions with IP66 protection. 3、Meet safety and sustainability via REACh compliance. 4、Secure emergency stop with mechanical latching and key release. 5、Integrate easily by meeting IEC and CSA standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for emergency switching off push-button |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | mechanical latching |
| Reset | Key release | Operator profile | Red mushroom Ø 40 mm, unmarked |
| Type of Keylock | Key 458A | Key withdrawal position | Center |
| Head type | Standard | CAD overall width | 1.6 in (40 mm) |
| CAD overall height | 1.6 in (40 mm) | CAD overall depth | 3.1 in (79 mm) |
| Net Weight | 0.15 lb(US) (0.07 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical durability | 300000 cycles | Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />C10 4 single and double front mounting |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class I IEC 61140 |
| IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X<br />NEMA 4<br />NEMA 12 |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | IEC 60364-5-53<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />GB 14048.5<br />JIS C8201-1 |
| Product Certifications | GL<br />DNV<br />CSA<br />LROS (Lloyds register of shipping)<br />UL Listed<br />BV | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
