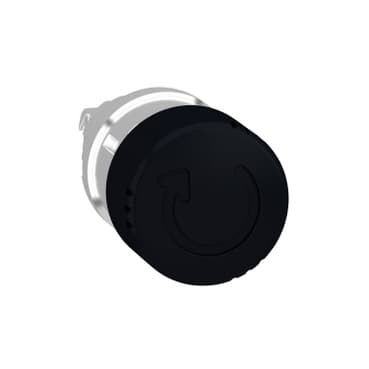

ZB4BS42
Product ID:24019
Updated: 2026/4/3
Key Features
- 1Ensure durability with chromium-plated metal construction for corrosion resistance. 2、Simplify installation using a standard Ø22mm mounting hole diameter. 3、Protect operations with an IP66 rating against dust and water ingress. 4、Apply versatility across control and signaling applications in various industries. 5、Leverage brand trust from Schneider Electric's reliable control solutions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Head type | Standard | Shape of signaling unit head | Round |
| Type of operator | latching | Reset | Turn to release |
| Operator profile | Black mushroom Ø 30 mm, unmarked | CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 1.2 in (30 mm) | CAD overall depth | 2.2 in (57 mm) |
| Net Weight | 0.146 lb(US) (0.066 kg) | Mechanical durability | 500000 cycles |
| Electrical composition code | C11 3 single front mounting<br />C15 1 single front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C10 4 single and double front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 | Standards | EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-1 |
| Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
