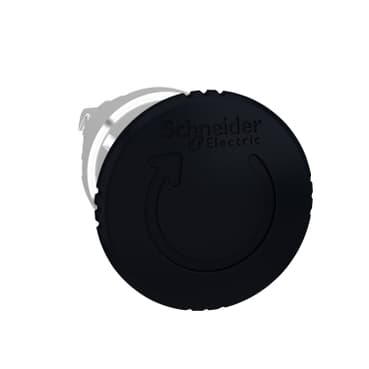

ZB4BS52
Product ID:24023
Updated: 2026/4/3
Key Features
- 1Utilize a high-quality chromium-plated metal bezel for superior durability and corrosion resistance. 2、Achieve precise panel fitment with the standardized 22 mm diameter and 57 mm height. 3、Ensure smooth and reliable machine actuation with the push-pull operation mechanism. 4、Maintain a sleek, professional control panel appearance with the classic black color. 5、Source from Schneider Electric, a globally trusted brand in industrial automation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Bezel material | Chromium plated metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Head type | Standard | Shape of signaling unit head | Round |
| Type of operator | latching | Reset | Turn to release |
| Operator profile | Black mushroom Ø 40 mm, unmarked | CAD overall width | 1.6 in (40 mm) |
| CAD overall height | 1.6 in (40 mm) | CAD overall depth | 2.2 in (57 mm) |
| Net Weight | 0.15 lb(US) (0.07 kg) | Mechanical durability | 500000 cycles |
| Electrical composition code | C11 3 single front mounting<br />C15 1 single front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C10 4 single and double front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 | Standards | EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1 |
| Product Certifications | BV<br />CSA<br />DNV<br />LROS (Lloyds register of shipping)<br />UL Listed | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
