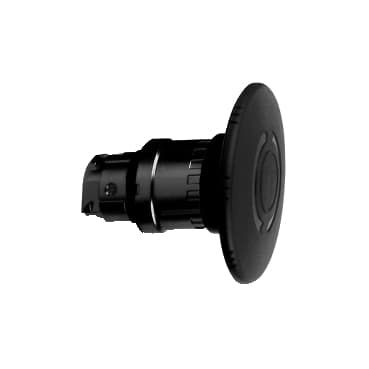

ZB4BS627
Product ID:24034
Updated: 2026/7/15
Key Features
- 1Ensure durability with high-quality chromium-plated metal construction.
- 2Achieve a sleek appearance using a non-illuminated mushroom button design.
- 3Simplify integration via a modular head design for various systems.
- 4Protect against harsh conditions with an IP69 rating for dust and water.
- 5Meet safety standards using UL 508 certification for electrical applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | latching |
| Reset | Turn to release | Operator profile | Black mushroom Ø 60 mm, unmarked |
| CAD overall width | 2.4 in (60 mm) | CAD overall height | 2.4 in (60 mm) |
| CAD overall depth | 2.2 in (57 mm) | Net Weight | 0.20 lb(US) (0.09 kg) |
| Mechanical durability | 300000 cycles | Electrical composition code | C11 3 single front mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13 | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-5-5<br />JIS C8201-1 | Product Certifications | BV<br />LROS (Lloyds register of shipping)<br />GL<br />CSA<br />UL Listed<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
