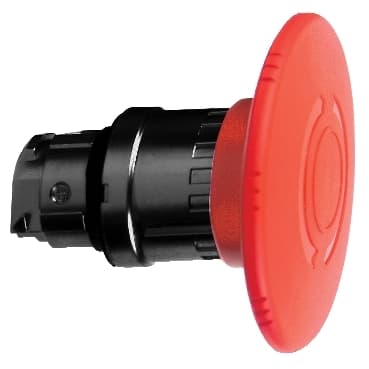

ZB4BS647
Product ID:24036
Updated: 2026/4/3
Key Features
- 1Activate emergency shutdown with a Ø60 red mushroom head. 2、Engage the reliable Ø22 mm latching turn release mechanism. 3、Utilize the durable black metal construction for longevity. 4、Install for quick and reliable shutdown in industrial settings. 5、Replace discontinued ZB4 series parts with this model.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for emergency switching off push-button |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | mechanical latching |
| Reset | Turn to release | Operator profile | Red mushroom Ø 60 mm, unmarked |
| Head type | Standard | CAD overall width | 2.4 in (60 mm) |
| CAD overall height | 2.4 in (60 mm) | CAD overall depth | 2.2 in (57 mm) |
| Net Weight | 0.20 lb(US) (0.09 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical durability | 300000 cycles | Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />C10 4 single and double front mounting |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class I IEC 61140 |
| IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X<br />NEMA 4<br />NEMA 12 |
| IK degree of protection | IK03 conforming to IEC 50102 | Standards | UL 508<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />IEC 60364-5-53<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />GB 14048.5<br />JIS C8201-1 |
| Product Certifications | LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV<br />GL<br />CSA | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
