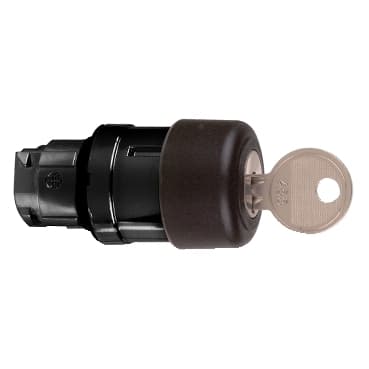

ZB4BS727
Product ID:24038
Updated: 2026/4/3
Key Features
- 1Utilize an ergonomic mushroom shape for easy operation with gloves. 2、Resist impact, dust, water, and vibration in harsh environments. 3、Secure machinery with a latching key release (key no. 455). 4、Operate reliably from -40°C to 70°C for versatile use. 5、Meet UL, CSA, and RoHS standards for safety compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | latching |
| Reset | Key release | Operator profile | Black mushroom Ø 30 mm, unmarked |
| Type of Keylock | Key 455 | Key withdrawal position | Center |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.2 in (30 mm) |
| CAD overall depth | 3.1 in (79 mm) | Net Weight | 0.146 lb(US) (0.066 kg) |
| Mechanical durability | 300000 cycles | Electrical composition code | C11 3 single front mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13 | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | UL 508<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | LROS (Lloyds register of shipping)<br />UL Listed<br />CSA<br />BV<br />GL<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
