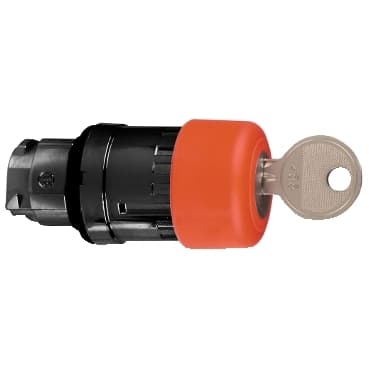

ZB4BS9347
Product ID:24054
Updated: 2026/4/3
Key Features
- 1Operate the easy-to-use red mushroom trigger for quick emergency stops. 2、Secure operations with the mechanical latching key release mechanism. 3、Withstand harsh environments thanks to the durable IP66 rating. 4、Install conveniently using the standard 22mm mounting hole diameter. 5、Ensure long-lasting performance with robust chromium-plated metal construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for emergency switching off push-button |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | trigger action and mechanical latching |
| Reset | Key release | Operator profile | Red mushroom Ø 30 mm, unmarked |
| Type of Keylock | Key 455 | Key withdrawal position | Center |
| Head type | Standard | CAD overall width | 1.2 in (30 mm) |
| CAD overall height | 1.2 in (30 mm) | CAD overall depth | 3.1 in (79 mm) |
| Net Weight | 0.207 lb(US) (0.094 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical durability | 300000 cycles | Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />C10 4 single and double front mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 61140 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X<br />NEMA 4<br />NEMA 12 | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | GB 14048.5<br />EN/ISO 13850<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />IEC 60364-5-53<br />EN/IEC 60204-1<br />EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />EN/IEC 60947-5-1<br />UL 508<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />GL<br />BV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
