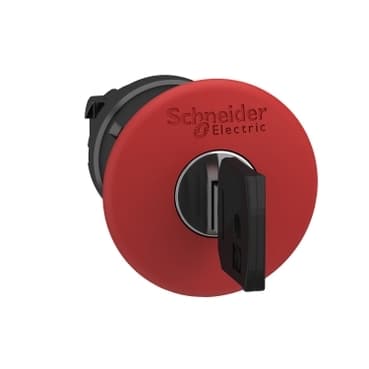

ZB4BS9447
Product ID:23946
Updated: 2026/4/3
Key Features
- 1Withstand 300,000 mechanical cycles for long-lasting performance. 2、Operate reliably from -40 to 70°C ambient air temperature. 3、Ensure secure shutdown with mechanical latching key release. 4、Protect against dust and water with IP66 (IEC 60529) rating. 5、Align with sustainability goals via RoHS compliance and recyclability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for emergency switching off push-button |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | trigger action and mechanical latching |
| Reset | Key release | Operator profile | Red mushroom Ø 40 mm, unmarked |
| Type of Keylock | Key 455 | Key withdrawal position | Center |
| Head type | Standard | CAD overall width | 1.6 in (40 mm) |
| CAD overall height | 1.6 in (40 mm) | CAD overall depth | 3.1 in (79 mm) |
| Net Weight | 0.216 lb(US) (0.098 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical durability | 300000 cycles | Electrical composition code | C7 4 single front mounting<br />C8 4 single and double front mounting<br />C11 3 single front mounting<br />C15 1 single front mounting<br />C10 4 single and double front mounting |
| Device presentation | Basic element | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 61140 | IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X<br />NEMA 4<br />NEMA 12 | IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | EN/IEC 60947-1<br />IEC 60364-5-53<br />EN/IEC 60204-1<br />EN/IEC 60947-5-5<br />UL 508<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/ISO 13850<br />GB 14048.5<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | GL<br />BV<br />LROS (Lloyds register of shipping)<br />CSA<br />DNV<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
