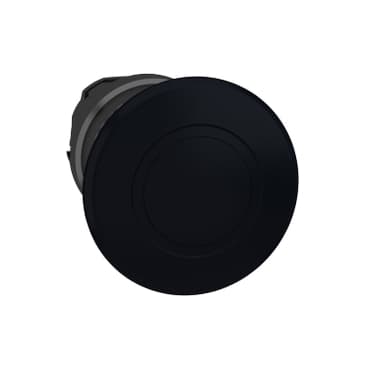

ZB4BT27
Product ID:23959
Updated: 2026/4/3
Key Features
- 1Withstand harsh environments with 1015.26 psi pressure washer resistance. 2、Ensure precise control with a 2-position stay-put mechanism. 3、Achieve long-lasting performance with high-quality black metal construction. 4、Connect flexibly using screw clamp, connector, or spring terminal types. 5、Reduce carbon footprint with Schneider's "Use Better, Use Longer" design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for non-illuminated push-button |
| Device short name | ZB4 | Bezel material | Black metal |
| Mounting diameter | 0.9 in (22 mm) | Sale per indivisible quantity | 1 |
| Head type | Standard | Shape of signaling unit head | Round |
| Type of operator | latching | Reset | Push-pull |
| Operator profile | Black mushroom Ø 40 mm, unmarked | CAD overall width | 1.6 in (40 mm) |
| CAD overall height | 1.6 in (40 mm) | CAD overall depth | 2.2 in (56 mm) |
| Net Weight | 0.170 lb(US) (0.077 kg) | Mechanical durability | 300000 cycles |
| Electrical composition code | C11 3 single front mounting<br />C15 1 single front mounting<br />C7 4 single front mounting<br />C8 4 single and double front mounting<br />C10 4 single and double front mounting | Device presentation | Basic element |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Overvoltage category | Class I IEC 60536 |
| IP degree of protection | IP66 IEC 60529<br />IP67<br />IP69<br />IP69K | NEMA degree of protection | NEMA 13<br />NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 | Standards | EN/IEC 60947-5-4<br />EN/IEC 60947-1<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />EN/IEC 60947-5-5<br />CSA C22.2 No 14<br />UL 508<br />JIS C8201-1 |
| Product Certifications | CSA<br />GL<br />DNV<br />BV<br />UL Listed<br />LROS (Lloyds register of shipping) | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
