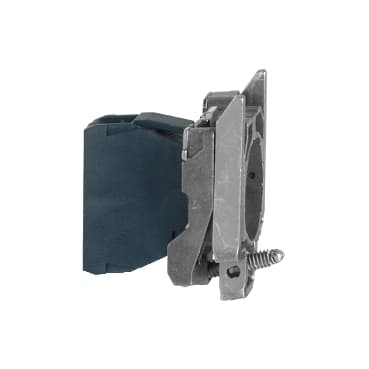

ZB4BV184
Product ID:24017
Updated: 2026/4/3
Key Features
- 1Ensure seamless integration with Harmony XB4 applications. 2、Feature a red flashing LED for clear visual indication. 3、Include an integral fixing collar for secure mounting. 4、Operate on a versatile 110-120V AC voltage range. 5、Construct with durable Zamak for long-term reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Complete body/light block assembly |
| Device short name | ZB4 | Fixing collar material | Zamak |
| Sale per indivisible quantity | 1 | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Light source | Bulb not included | Bulb base | BA 9s |
| [Us] rated supply voltage | 110...120 V AC 50/60 Hz | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) EN 60947-1 |
| Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | [Ui] rated insulation voltage | 600 V 3)EN 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV EN 60947-1 | Signalling type | Flashing |
| Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Electrical shock protection class | Class I IEC 60536 |
| Standards | EN/IEC 60947-5-4<br />EN/IEC 60947-5-5<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />UL 508<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />JIS C8201-1 | Product Certifications | CSA<br />DNV<br />BV<br />LROS (Lloyds register of shipping)<br />GL<br />UL Listed |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
