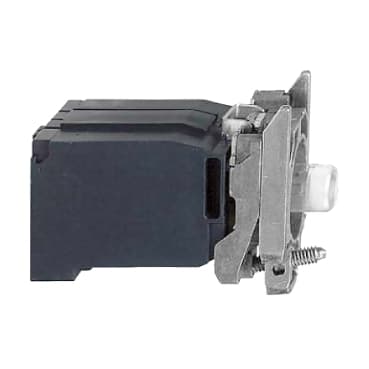

ZB4BV5
Product ID:24090
Updated: 2026/7/15
Key Features
- 1Construct high-quality metal with a chromium-plated bezel for durability.
- 2Design for versatile compatibility with XB4 series pushbuttons.
- 3Ensure reliable operation with 400V AC and screw-clamp terminals.
- 4Utilize a compact size of 1.85"H x 1.18"W x 2.36"D.
- 5Simplify installation using the included body/fixing collar.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Complete body/light block assembly |
| Device short name | ZB4 | Fixing collar material | Zamak |
| Sale per indivisible quantity | 1 | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end |
| Light source | Incandescent | Bulb base | BA 9s |
| Light block supply | Via integral transformer 1.2 VA 6 V | [Us] rated supply voltage | 400 V AC 50/60 Hz |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 2.4 in (60 mm) | Terminals description ISO n°1 | (X1-X2)PL |
| Net Weight | 0.289 lb(US) (0.131 kg) | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 | [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | Signalling type | Steady |
| Mounting of block | Front mounting | Electrical composition code | P4 |
| Device presentation | Basic sub-assemblies | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Electrical shock protection class | Class I IEC 60536 | IP degree of protection | IP20 |
| Standards | IEC 60947-1<br />IEC 60947-5-5<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-5-4<br />UL 508<br />JIS C8201-1 | Product Certifications | DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
