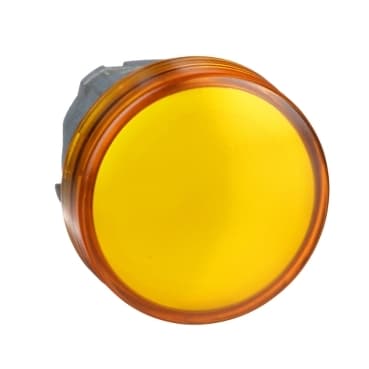

ZB4BV53
Product ID:24091
Updated: 2026/4/3
Key Features
- 1Utilize a Zamak fixing collar for superior durability and vibration resistance. 2、Connect quickly and securely with Faston terminals for tool-free installation. 3、Ensure compliance with both EU and China RoHS environmental regulations. 4、Operate reliably with standard BA9s incandescent bulbs for easy maintenance. 5、Access continued product support through Schneider Electric's replacement range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Complete body/light block assembly |
| Device short name | ZB4 | Fixing collar material | Zamak |
| Sale per indivisible quantity | 1 | Connections - terminals | Faston connector 1 x 6.35 mm |
| Light source | Incandescent | Bulb base | BA 9s |
| Light block supply | Via integral transformer 1.2 VA 6 V | [Us] rated supply voltage | 400 V AC 50/60 Hz |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 2.4 in (60 mm) | Terminals description ISO n°1 | (X1-X2)PL |
| [Ui] rated insulation voltage | 250 V 3)EN 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV EN 60947-1 |
| Signalling type | Steady | Mounting of block | Front mounting |
| Electrical composition code | P4 | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Electrical shock protection class | Class I IEC 60536 | IP degree of protection | IP20 |
| Standards | EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-1 | Product Certifications | UL Listed<br />CSA |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
