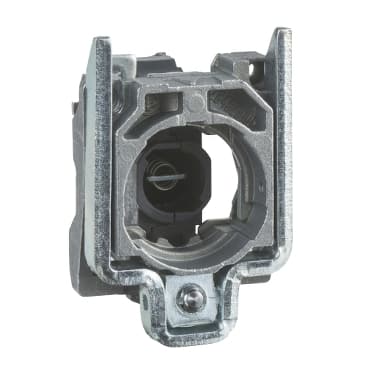

ZB4BV6
Product ID:24097
Updated: 2026/4/3
Key Features
- 1Ensure reliability with a high-quality Schneider Electric pilot light module. 2、Meet diverse needs with NEMA 1/2/3/4/4X/12/13 enclosure compatibility. 3、Guarantee safety and compliance with UL Listed and CSA certification. 4、Simplify installation using the 22 mm size and screw clamp terminals. 5、Utilize standard BA9s bulbs for versatile lighting applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Complete body/light block assembly |
| Device short name | ZB4 | Fixing collar material | Zamak |
| Sale per indivisible quantity | 1 | Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Light source | Bulb not included | Bulb base | BA 9s |
| Light block supply | Direct <2.4 W | [Us] rated supply voltage | <= 250 V |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 1.5 in (37 mm) | Terminals description ISO n°1 | (X1-X2)PL |
| Net Weight | 0.115 lb(US) (0.052 kg) | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | Signalling type | Steady |
| Device presentation | Basic sub-assemblies | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 60536 | Standards | IEC 60947-5-5<br />IEC 60947-5-4<br />IEC 60947-1<br />IEC 60947-5-1<br />UL 508<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />JIS C8201-1 |
| Product Certifications | DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />CSA | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
