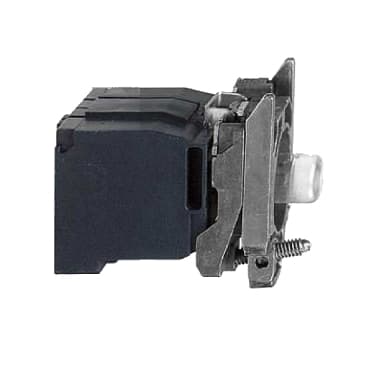

ZB4BV63
Product ID:24099
Updated: 2026/4/3
Key Features
- 1Assemble easily for quick installation. 2、Secure mounting with a durable zamak fixing collar. 3、Connect versatilely using Faston connectors. 4、Ensure compatibility with standard BA9s bulbs. 5、Operate reliably across 250V applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Complete body/light block assembly |
| Device short name | ZB4 | Fixing collar material | Zamak |
| Sale per indivisible quantity | 1 | Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm |
| Light source | Bulb not included | Bulb base | BA 9s |
| Light block supply | Direct <2.4 W | [Us] rated supply voltage | <= 250 V |
| CAD overall width | 1.2 in (30 mm) | CAD overall height | 1.9 in (47 mm) |
| CAD overall depth | 1.5 in (37 mm) | Terminals description ISO n°1 | (X1-X2)PL |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
| Signalling type | Steady | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| Electrical shock protection class | Class I IEC 60536 | Standards | UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-5-5<br />IEC 60947-5-1<br />JIS C8201-1 |
| Product Certifications | UL Listed<br />CSA | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
