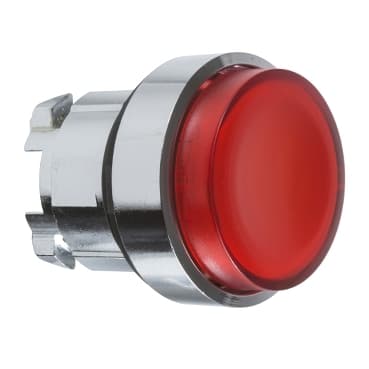

ZB4BW14
Product ID:24320
Updated: 2026/4/4
Key Features
- 1Ensure reliable operation in industrial control applications. 2、Achieve panel compatibility with the standard 22mm size. 3、Enhance visibility using vibrant red illumination. 4、Withstand harsh conditions in demanding electrical systems. 5、Simplify installation and maintenance on machinery.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony XB4 | Product or Component Type | Head for illuminated push-button |
| Device short name | ZB4 | Product Compatibility | BA 9s |
| Bezel material | Chromium plated metal | Head type | Standard |
| Mounting diameter | 0.9 in (22.5 mm) | Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round | Type of operator | spring return |
| Operator profile | Red projecting, unmarked | Operator additional information | With plain lens |
| cap/operator or lens colour | Red | CAD overall width | 1.1 in (29 mm) |
| CAD overall height | 1.1 in (29 mm) | CAD overall depth | 1.3 in (32 mm) |
| Net Weight | 0.062 lb(US) (0.028 kg) | Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Mechanical durability | 10000000 cycles | Electrical composition code | M7 6 single front mounting BA 9s<br />M8 6 single and double front mounting BA 9s<br />M9 2 single front mounting BA 9s and transformer |
| Device presentation | Basic sub-assemblies | Protective treatment | TH |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
| Overvoltage category | Class I IEC 60536 | IP degree of protection | IP66 IEC 60529<br />IP69<br />IP69K |
| NEMA degree of protection | NEMA 13<br />NEMA 4X | IK degree of protection | IK06 conforming to IEC 62262 |
| Standards | IEC 60947-5-5<br />IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-1<br />UL 508<br />IEC 60947-5-4<br />JIS C8201-5-1<br />JIS C8201-1 | Product Certifications | CSA<br />LROS (Lloyds register of shipping)<br />BV<br />UL Listed<br />DNV |
| Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
